Compact Enclosures
Compact Enclosures
Enclosure and case systems in a compact design, available in the following variants: compact enclosures AX, plastic enclosures AX and system enclosures SE. Extremely versatile for controller applications with moderate space requirements. Meets the highest standards of corrosion protection with a protection category of up to IP 66. The wall-mounted enclosures offer simple interior installation and flexible cable entry.
Compact Enclosure Ax
System Perfection. The New Compact Enclosure Ax Provides Maximum Data Quality And Seamless Engineering, Plus Safe, Flexible Assembly And Interior Installation.

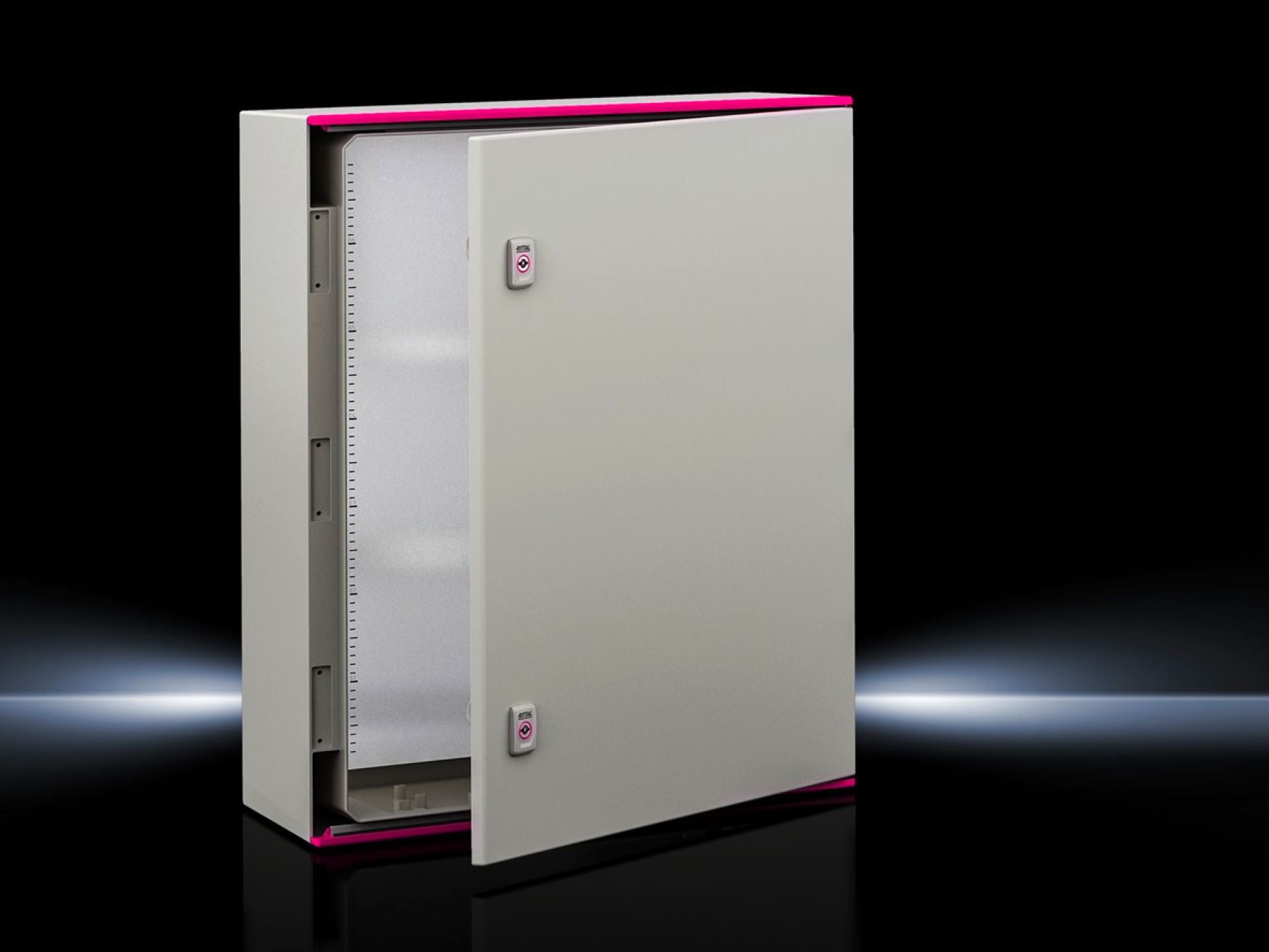

Plastic Enclosures Ax
Ax Plastic Enclosures, Optionally With Or Without Inspection Window, Are Ideal For Outdoor Applications. Numerous Mounting Domes In The Enclosure Provide Individual Interior Configuration Options In A 25 Mm Pitch Pattern, E.G. With Punched Sections And Rails.

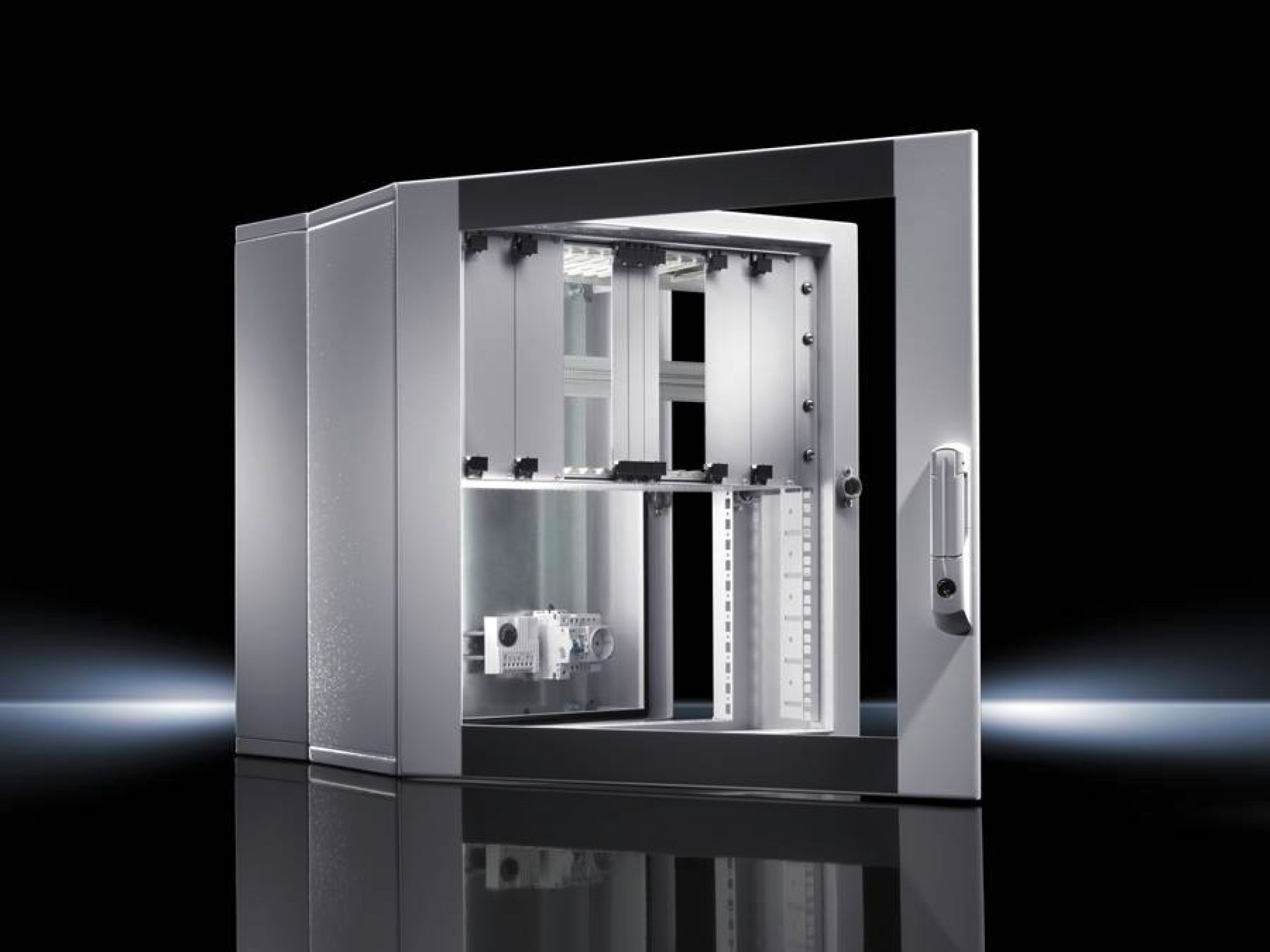

Wall-Mounted Enclosures El
3-Part Wall-Mounted Enclosure With 482.6 Mm (19″) Mounting Level And Designer Glazed Door. The Vertically Hinged Desk Unit Provides Optimum Access To The Installed Components From The Front And Rear. The Wall-Mounting Part Allows Cable Entry From Above Or Below.
Vx Se Free-Standing Enclosure System
Free-Standing Sheet Steel Enclosure With Stable Enclosure Body, Two Integral Mounting Levels, Screw-Fastened Rear Panel And Door. Roof And Sides From A Single Piece With Roll-Formed Frame. Fully Compatible With The Vx25 Baying System. Enclosure Widths From 600 To 1800 Mm And Enclosures With 300 Mm Depth For Applications In Facility Management. Efficiency Is Enhanced, As The Side Panels No Longer Need To Be Fitted And Large Enclosure Widths Replace Small Bayed Suites.

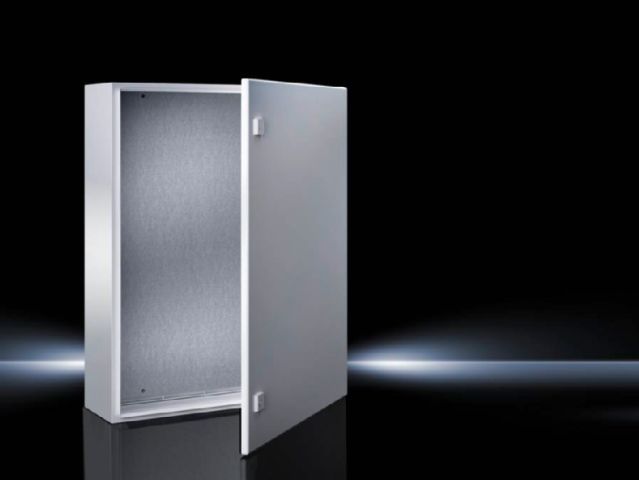

Compact Enclosures Ae
Enclosure With Door Of Sheet Steel, Spray-Finished With Mounting Plate And Gland Plate In The Base Protection Category Up To Ip 66.

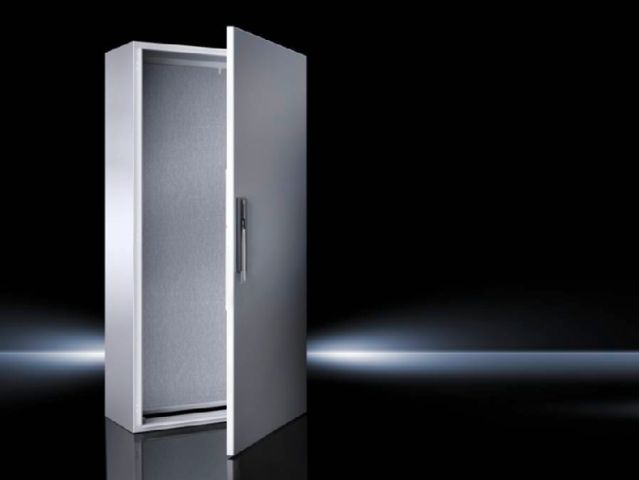

Compact System Enclosures Cm
Enclosure With Door Of Sheet Steel, With Mounting Plate And Open Base To Accommodate Base Plates. Protection Category Ip 55. A Symbiosis Of The Enclosure Benefits Of Rittal Compact Enclosures, And The Configuration Diversity Of The Ts 8 Baying Enclosure System. Perforated Mounting Strips In The Door For Fast Attachment Of Support Strips, Cable Conduit Holders And Covers.
